Sand Making Machine with International-level and High-performance sand making equipment are developed and manufactured by Germany advanced technology which is brought in by our company. Sand Making Machine is suitable for crushing and shaping soft or middle-hard or extremely hard materials, widely applied to pebble, rocks (limestone, granite, basalt, dolerite, andesite), iron ore tailings, artificial sand making of stone chips. Water conservancy and hydropower of engineering field, high-grade highways, expressway and railway, passenger railway, bridge, airport pavement, municipal engineering, sand manufacturing and aggregated rock shaping.

VSI Impact Sand Making Machine is called as VSI Sand Making Machine for short, also called as The Third Generation Sand Maker or New-type Sand Maker. SANME introduced German technology, developed and manufactured this international level high performance new-type sand making equipment; it places an irreplaceable role in fine crushing.

In the engineering field, the sand making machine is ideal equipment for sand, cushion material, asphalt concrete and cement concrete aggregate. In the mining sector, sand making machine is widely used in the preceding grinding process, it can produce large amounts of iron ore fines, reducing the high cost of grinding load.

Because of its excellent low wear characteristics, sand making machine also for applied in high abrasion and secondary crushing disintegration production. In addition, because of the it's zero pollution, sand making machine can be well adapted to the production of glass quartz sand and other high purity materials in, with capacity of 10-500tph, sand making machine fits almost any production requirements.

Features and technology advantages of Sand Making Machine:

1.Simple and reasonable structure, low cost
2.High crushing ratio, energy saving
3.Fine crush and grind
4.Moisture content of raw material up to about 8%
5.Suitable for crushing hard material
6.Excellent shape of final product
7.Small abrasion, easy maintenance
8.Noise when working is below 75dB

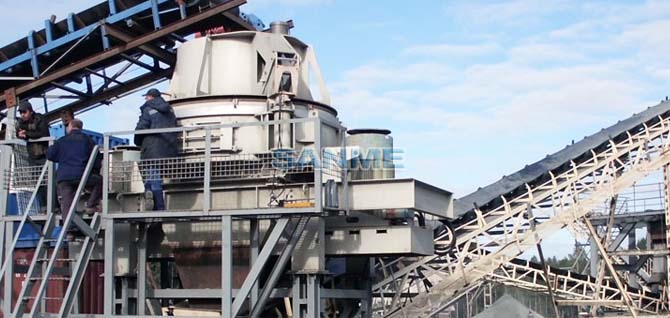

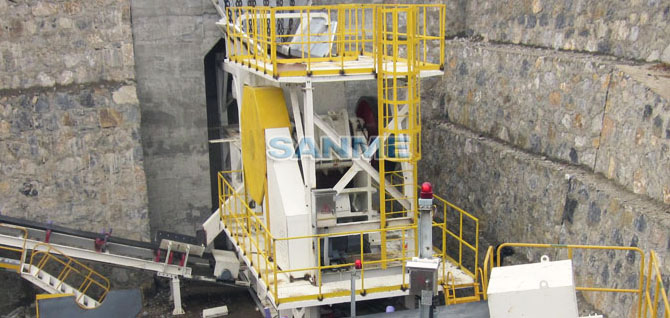

Sand Making Machine   Sand Making Machine

Sand Making Machine   Sand Making Machine

Sand Making Machine working principle:

The materials fall into impeller with high-speed rotation vertically. On the force of high-speed centrifugal, the materials strike to the other part of material in a high speed. After mutual impacting, the materials will strike and rub between the impeller and the casing and then be discharged straight from the lower portion to form a closed multiple cycles. Final product is controlled by screening equipment to meet the requirement.

Sand Making Machine has two types: rock-on-rock and rock-on-iron. Rock-on rock is to process abrasive material and rock-on –iron is to process normal material. The production of rock-on-iron is 10-20% higher than rock-on-rock.

Application of Sand Making Machine :

1.River stone, mountain stone(limestone, basalt, granite, diabase, andesite.etc), Ore tailings, aggregate chips
2.Hydraulic and hydroelectric engineering, high-level road, highway and railway, passenger rail line, bridge, airport runway, municipal projects, sand making and rock reshaping
3.Building aggregate, highway road fabrics, cushion material, asphalt concrete and cement concrete aggregate.
4.Crushing progress before grinding in mining field. The crushing of building material, metallurgy, chemical industry, mining, fireproofing, cement, abrasive, etc.
5.Breaking of high abrasive and secondary disintegration, sulfur in thermal power and metallurgy industry, environmental projects such as slag, construction waste crushing.
6.Manufacturing of glass, quartz sand and other high purity material.

Sand Making Machine Product LineData Parameters:

Model Max Feed Size(mm) Rotor Speed(r/min) Capacity
Motor Power(kw) Overall Dimensions(L×W×H)(mm) Weight(kg)
VSI-3000 45(70) 1700-2000 30-60 75-90 3080×1716×2126 ≤5310
VSI-4000 55(70) 1400-1620 50-90 110-150 4100×1916×2166 ≤7840
VSI-5000 65(80) 1330-1530 80-150 180-264 4300×2215×2427 ≤11200
VSI-6000 70(100) 1200-1400 120-250 264-320 5300×2728×2773 ≤14590
VSI-7000 70(100) 1000-1200 180-350 320-400 5300×2728×2863 ≤16580
VSI-8000 80(150) 1000-1100 250-380 400-440 6000×3000×3420 ≤23450
VSI-9000 80(150) 1000-1100 380-600 440-630 6000×3022×3425 ≤23980
